iBeLink™ DM11G ASIC Dash Miner Support Thread

Etin

Member
Jul 2, 2017
107
9
68
122
Huummm.. seems like many new users running iBeLink DM11Gs. Also many users experiencing boot/config/pool issues. User learning curves ... or glitchy mining hardware... or both?
Learning curve for me. First miner and personally it was a great choice. Apart form entering my pool details not a lot of action was required from me. Of course because its my first miner I had many questions on my observations based on changes I see in the console. If I had to change any thing it would be
  1. I should have bought more miners
  2. I should have used a co-Location/ hosting facility for the miner
All together I have no regrets and I have learnt a lot. I will get more as soon as I can and apply point 1 and 2 above.

  • Like
Reactions: sminar

sminar

New Member
Mar 29, 2017
11
0
1
61
Hi All,

Need some help with pool configuration management on the DM11G.
I currently have 6 pools configured. I'm accessing the DM11G with the Chrome browser. Entering new pools can be glitchy, but works with careful attention.

My primary wish is to have the active high priority (0 priority) pool remain the selected pool through a reboot or restart.
Currently, the software appears to choose the pool that was entered first when it restarts or reboots. Also, pools that were stopped with the stop button are started again at reboot.
I have clicked the Save All Configuration button many times, but it doesn't seem to affect the above restart/reboot behavior.

Also, I'm unclear what the checkmark on the left of each pool item does / represents. If you click one, the checkmark changes to a red background and the form below is filled with the data from the pool. It appears that it's just a way to select one for editing. I assume a "Save" would update the selected pool, but I've not tested it.

It would be handy to be able to sort the pool list by headers, primarily priority.

Any ideas on how to get the active/high priority pool to stick through the reboot / restart process?

Thanks,
Steve


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Hi All,

Need some help with pool configuration management on the DM11G.
I currently have 6 pools configured. I'm accessing the DM11G with the Chrome browser. Entering new pools can be glitchy, but works with careful attention.

My primary wish is to have the active high priority (0 priority) pool remain the selected pool through a reboot or restart.
Currently, the software appears to choose the pool that was entered first when it restarts or reboots. Also, pools that were stopped with the stop button are started again at reboot.
I have clicked the Save All Configuration button many times, but it doesn't seem to affect the above restart/reboot behavior.

Also, I'm unclear what the checkmark on the left of each pool item does / represents. If you click one, the checkmark changes to a red background and the form below is filled with the data from the pool. It appears that it's just a way to select one for editing. I assume a "Save" would update the selected pool, but I've not tested it.

It would be handy to be able to sort the pool list by headers, primarily priority.

Any ideas on how to get the active/high priority pool to stick through the reboot / restart process?

Thanks,
Steve
Hi Steve,
You are correct about the checkmark next to the pool, they are used so you can edit the information of that pool. For your 0 priority pool to remain the selected pool after a reboot or restart, it will need to be entered as the first pool. Unfortunately, the software forgets the priority you've set after a reboot or restart and reorders them from the top down according to pool number. This issue has been made known to the software team but currently there is no update or notices yet.

  • Like
Reactions: sminar

shaninium

Member
Feb 12, 2017
39
5
48
40
Where can we download cgminer-IB3.5.25 update as advertised on your twitter feed? Will it have #xnsub support and is that why it will mine better on nicehash for this update?


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Where can we download cgminer-IB3.5.25 update as advertised on your twitter feed? Will it have #xnsub support and is that why it will mine better on nicehash for this update?
Hi Shaninium,
You can get the update directly from the Configuration page. At the bottom, check the box next to Update and hit the Update button. Unfortunately the only notes we received was that Nicehash will have better support. I have tried to use #xnsub but do not think it works yet.


Etin

Member
Jul 2, 2017
107
9
68
122
I just noticed that the iBelink DM11 was up for sale. I am kinda disappointed as I got no notification even though I am on the waiting list. I just happen to check the website like I frequently do and found it now "out of stock" for September delivery.

When are we like to get the upgrade kit for our units


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
I just noticed that the iBelink DM11 was up for sale. I am kinda disappointed as I got no notification even though I am on the waiting list. I just happen to check the website like I frequently do and found it now "out of stock" for September delivery.

When are we like to get the upgrade kit for our units
Hi,
Sorry to hear you missed it. You can try following our twitter @ibelink_co There is still no news on upgrade kits yet.


sminar

New Member
Mar 29, 2017
11
0
1
61
Hi,

Looking for some help understanding why our active maps are changing frequently.
Currently mining at NiceHash with the latest firmware, IB3.5.25.
When I restart, I usually achieve 16 for each blade in the active map.
Temps seem fine in the 28-32°C range.
After mining for a while, one or more and eventually all of the blades' active maps drop from 16.
Mining returns suffer when the active maps aren't 16.

Any ideas?

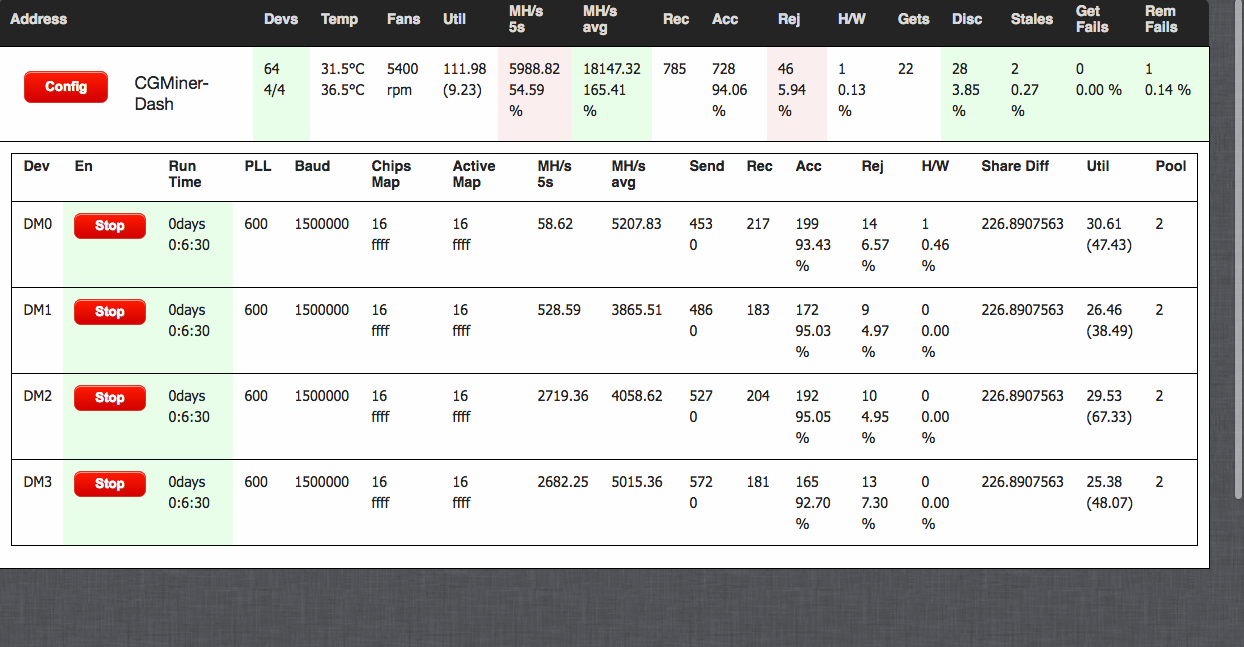

Here's a recent screenshot:



iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Hi,

Looking for some help understanding why our active maps are changing frequently.
Currently mining at NiceHash with the latest firmware, IB3.5.25.
When I restart, I usually achieve 16 for each blade in the active map.
Temps seem fine in the 28-32°C range.
After mining for a while, one or more and eventually all of the blades' active maps drop from 16.
Mining returns suffer when the active maps aren't 16.

Any ideas?

Here's a recent screenshot:

View attachment 4672
Hi,
It is normal for the active map to change as it is affected by difficulty. It is just a status indicator of the chips getting work to do.


sminar

New Member
Mar 29, 2017
11
0
1
61
Hi,
It is normal for the active map to change as it is affected by difficulty. It is just a status indicator of the chips getting work to do.
Thanks for the explanation!
I do notice when we restart, we seem to jump right back to all active maps=16 and our accepted hashrate and payouts climb back to the top. It seems like it's beneficial to do this periodically during the day, but it would be nice not to have to watch things so closely.


jfrenum

New Member
Aug 24, 2017
3
0
1
41
Arizona, US
Hello,
I want to know whether or not the DM11G can have difficulty set manually.
I have read quite a bit about manually setting the difficulty but all the FAQs and guides I have found refer to a command line instruction to manually set the difficulty and I don't know where this would be input on the DM11G.

I hope I am not overlooking something simple.
Also, I am currently mining on P2PoolMining


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Hello,
I want to know whether or not the DM11G can have difficulty set manually.
I have read quite a bit about manually setting the difficulty but all the FAQs and guides I have found refer to a command line instruction to manually set the difficulty and I don't know where this would be input on the DM11G.

I hope I am not overlooking something simple.
Also, I am currently mining on P2PoolMining
Hi,
The place to set the difficulty varies depending on the pool. Some are inserted in the password field while some are inserted in the user field. I believe for P2Poolmining, you add it to the user field [user]+difficulty


MorG

New Member
Aug 25, 2017
1
0
1
40
iBeLink_1, hi!
Why are the fields Low Hashrate Threshold (MH), High Reject Threshold (%) and others in this block not active?


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
iBeLink_1, hi!
Why are the fields Low Hashrate Threshold (MH), High Reject Threshold (%) and others in this block not active?
Hi MorG,
Those fields are no longer active since they are now controlled by the miner. There are coded triggers set in the software that monitors and auto-restarts the miner when it detects an issue.


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Hello iBelink_1!

My DM3 show too high hashrate. Is it ok? There is hashrate on coinmine on next pictures at the same time. As DM1, one PCB is damage and sent for replacment.
Hi,
Having a high hashrate is ok. The miner must have been hashing above the specs for a while. Your temperature is pretty low which could have increased the efficiency. The main things to look for is the temperature, PLL, chips map, and H/W.


Lttrickson

New Member
Jun 2, 2017
6
1
1
34
Hi,

I have been getting very different reading from my miners. I have got the temp down as much as possible. but Pll seems not to adjust. I am pretty sure something is very wrong with Miner 3, hash rate is consistently below 6. Miner 2 is completely out performing it and has a higher intake temp reading. Can I set the Pll manually? my room environment is 31°. thanks in advance,


Attachments

iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Hi,

I have been getting very different reading from my miners. I have got the temp down as much as possible. but Pll seems not to adjust. I am pretty sure something is very wrong with Miner 3, hash rate is consistently below 6. Miner 2 is completely out performing it and has a higher intake temp reading. Can I set the Pll manually? my room environment is 31°. thanks in advance,
Hi,
Unfortunately you are not able to set the PLL manually. I am not sure why Miner 3 has set your PLL that low. Have you tried placing it in a different location? These miners are very temperamental to temperature and sometimes little changes makes a big difference. There is also a new firmware update IB3.5.25.
If you suspect Miner 3 to have issues, you will need to do the Single Blade Test and see if any hashing blades are bad. Otherwise it is just the software limiting the PLL due to temperature.


Ribs

New Member
May 18, 2017
4
1
3
49
Can anyone tell me what the solid blue light on each blade means? One of my blades that light is off, and this blade keeps showing only half of the chip maps and half the hashrate, or not initializing at all when restarting. If I start with one blade, and then power down, add another, restart, until all the blades are connected, it will show full chip maps and full hashrate, but only after several attempts of that process. Still, the blue light remains off. Any thoughts on what's going on?


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Can anyone tell me what the solid blue light on each blade means? One of my blades that light is off, and this blade keeps showing only half of the chip maps and half the hashrate, or not initializing at all when restarting. If I start with one blade, and then power down, add another, restart, until all the blades are connected, it will show full chip maps and full hashrate, but only after several attempts of that process. Still, the blue light remains off. Any thoughts on what's going on?
Hi,
It could be that the led diode got burnt. Do you see blinking blue lights on the blade though? That indicates the hashing boards are doing work.


Ribs

New Member
May 18, 2017
4
1
3
49
Hi,
It could be that the led diode got burnt. Do you see blinking blue lights on the blade though? That indicates the hashing boards are doing work.
Yes the blades do their blue blinking routine at startup and while hashing. That is the case even when the problem blade is only showing half the chip maps and half the hashrate though. Right now it seems to be working good again after updating the firmware so I'll just see how it goes. Thanks for the reply.


dashminelover

Member
Jul 17, 2017
217
30
88
57
Dear iBeLink
I got my machine finally and started it, I must say that its exterior is very beautiful, things look fine other than below mentioned issues:-

Issue # 1: One of the front intake fans are not working, i checked the cables and all is ok but still its simply not powering up at all, as a temporary solution i put a portable fan infront of it to make sure it also does get intake.

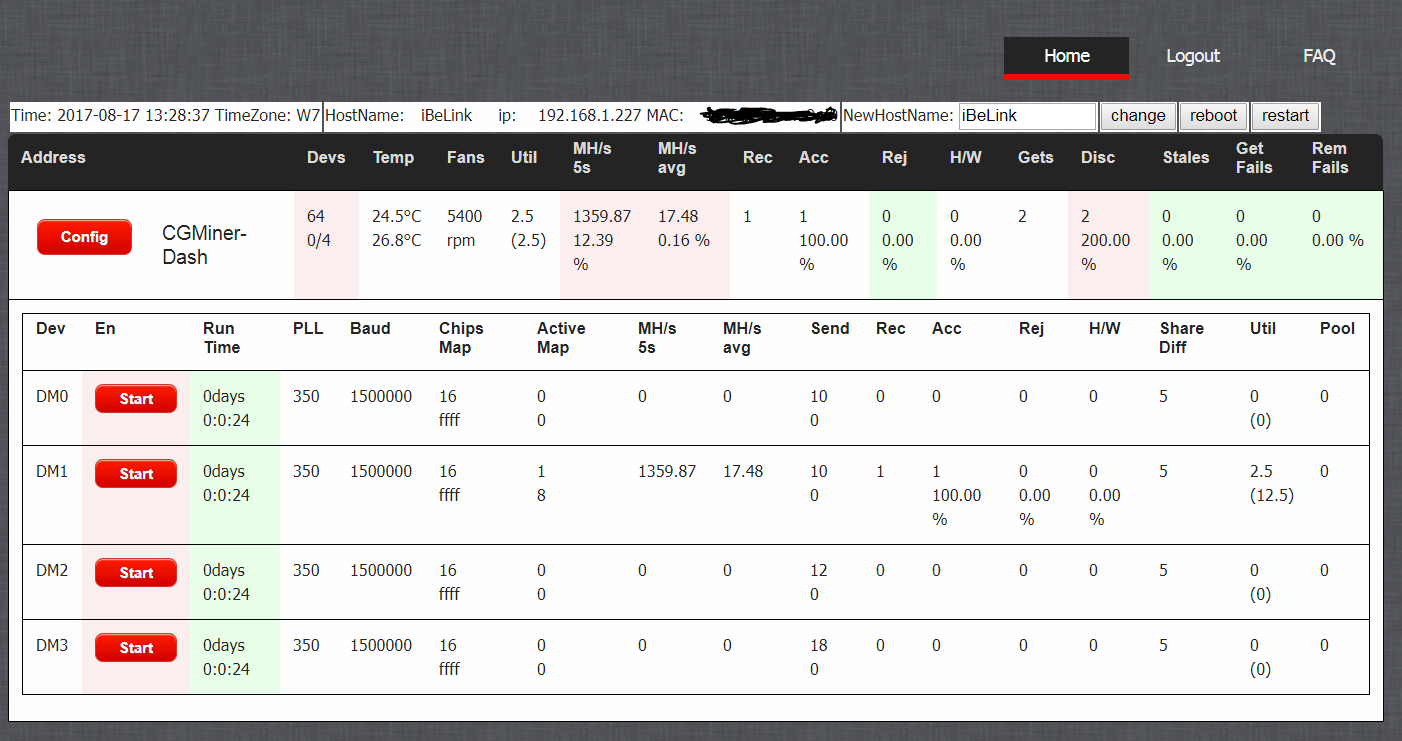

Issue # 2: I get alot if 'Discard', just wondering why and what could be the reason? (view attached screenshot https://ibb.co/iqZue5 )



Issue # 3: I see two temperature values, please advise what is the difference and are the temps under control?

Issue # 4: How frequently should i restart the machine or just keep it running without any pause?

Thanks and looking forward to your quick response.


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Dear iBeLink
I got my machine finally and started it, I must say that its exterior is very beautiful, things look fine other than below mentioned issues:-

Issue # 1: One of the front intake fans are not working, i checked the cables and all is ok but still its simply not powering up at all, as a temporary solution i put a portable fan infront of it to make sure it also does get intake.

Issue # 2: I get alot if 'Discard', just wondering why and what could be the reason? (view attached screenshot https://ibb.co/iqZue5 )



Issue # 3: I see two temperature values, please advise what is the difference and are the temps under control?

Issue # 4: How frequently should i restart the machine or just keep it running without any pause?

Thanks and looking forward to your quick response.
Hi,
I'll help you as much as I can.
#1: Have you tried other power cables? If it still isn't working, the fan might be broke. You can try submitting a ticket on our website to get it replaced.
#2: If you are mining on a stratum, discards are not too important. It varies based on the pool, network connection, etc.
#3: The two temperatures are the avg temperature across all 4 blades at the front of the case and at the back of the case. It is best to keep it under 37C/38C. As temperature goes up, the miner will auto-adjust the PLL to a lower setting to prevent the chips from being damaged.
#4: You can keep the machine running 24/7. If you feel like something is wrong, you can restart the miner.


dashminelover

Member
Jul 17, 2017
217
30
88
57
Hi,
I'll help you as much as I can.
#1: Have you tried other power cables? If it still isn't working, the fan might be broke. You can try submitting a ticket on our website to get it replaced.
#2: If you are mining on a stratum, discards are not too important. It varies based on the pool, network connection, etc.
#3: The two temperatures are the avg temperature across all 4 blades at the front of the case and at the back of the case. It is best to keep it under 37C/38C. As temperature goes up, the miner will auto-adjust the PLL to a lower setting to prevent the chips from being damaged.
#4: You can keep the machine running 24/7. If you feel like something is wrong, you can restart the miner.
Q1) What power cables are you referring to, the tiny power cables inside are all occupied and there is only one Cable which is free, but that is not like the standard ones connected to fan. Do you think its ok to keep running the machine while this fan isn't working?

Q2) Just wondering why are discards not important, just curious to know as its almost 200% discards

Thanks.


iBeLink_1

Active Member
Feb 17, 2016
382
65
98
Q1) What power cables are you referring to, the tiny power cables inside are all occupied and there is only one Cable which is free, but that is not like the standard ones connected to fan. Do you think its ok to keep running the machine while this fan isn't working?

Q2) Just wondering why are discards not important, just curious to know as its almost 200% discards

Thanks.
Hi,
#1: You can keep the miner running even while that fan isn't working. As long as the miner is cooler than 38C, it won't affect your PLL.
#2: Quoting from another source, "Discarded is a meaningless stat unless you're using getwork (and even then it only matters to the pool operator, not the miner). It is a 100% useless stat on GBT and Stratum. Discards are not rejects, they aren't even shares. It means your software had work prepared to hash but instead it discarded it in favor of newer/fresher work. You aren't wasting any hashes when your miner discards work."
