Pinidea DR-100 x11 Dash miner

dashx11fans

New Member
Aug 16, 2017
1
0
1
22
Pinidea DR-100 x11 Dash miner

DR-100 is the latest Dash miner recently-developed by Pinidea, with hashrate up to 17G.

DR-100 official parameters:
HashRate: 17,000 MH/s ±5%
Power:820 watts(wall power ±5%)
Noise level: 79db @ 0.2m
Unit number of chip:72 asics
Working temperature: from 0°C to 40°C
Network connection:Ethernet
Power supply: 110V~240V,50Hz、60Hz
Certification:FC,CE
Size: 28cm(length)×18cm(wide)×15cm(high)
Weight:5kg

Here are the latest reviews:
1. The photo about our product
DR-100 is equipped with five layers of hard packing .The double open foam plate is fully enclosed and packed.It has a good anti-shock effect.





The appearance of DR-100




2. The way to install
The test is used the Great Wall 1000W power supply.


The installation of the DR-100 is very simple.First,you can plug in the power supply.The DR-100’s main control board and the four calculation plates are 6pin pci-e power supply.

Connect the cable.

The final wiring diagram

3.Debug mode
After the power is switched on, please enter the default IP address 192.168.1.200 into the manage page of the miner, the password is admin.


4.Testing piece
The environment temperature is 25℃,the indoor noise is about 41dBa. The mine for this test is nicehash.com and dash.cybtc.info.
(1).Noise test
The DR-100 interface doesn’t have the option to adjust the fan. The interface shows two fan speeds:

The noise is 79db.The distance is 20 cm from the miner.

(2).Power test
The power of the miner at 300MHz is as follows:


(3).Computing power test

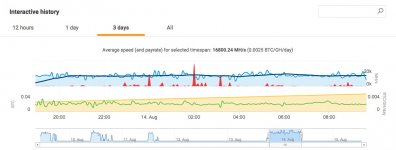

 Nicehash’s hashrate testing time is 12H. The nicehash ‘s reject rate is high due to netdelay.But the overall computer power performance is very good.

 Cybtc’s hashrate testing time is 12H.The cybtc’s computer power fluctuates strongly but the overall situation is normal.

5.Conclusion
DR-100 with hashrate up to 17G is only 5KG and the power dissipation is about 820W.It is important that the DR-100 is in stock .There is really nothing to say.DR-100 has cost-effective.


Attachments

dicemanfx

New Member
Aug 17, 2017
2
0
1
33
Pinidea DR-100 x11 Dash miner

DR-100 is the latest Dash miner recently-developed by Pinidea, with hashrate up to 17G.

DR-100 official parameters:
HashRate: 17,000 MH/s ±5%
Power:820 watts(wall power ±5%)
Noise level: 79db @ 0.2m
Unit number of chip:72 asics
Working temperature: from 0°C to 40°C
Network connection:Ethernet
Power supply: 110V~240V,50Hz、60Hz
Certification:FC,CE
Size: 28cm(length)×18cm(wide)×15cm(high)
Weight:5kg

Here are the latest reviews:
1. The photo about our product
DR-100 is equipped with five layers of hard packing .The double open foam plate is fully enclosed and packed.It has a good anti-shock effect.





The appearance of DR-100




2. The way to install
The test is used the Great Wall 1000W power supply.


The installation of the DR-100 is very simple.First,you can plug in the power supply.The DR-100’s main control board and the four calculation plates are 6pin pci-e power supply.

Connect the cable.

The final wiring diagram

3.Debug mode
After the power is switched on, please enter the default IP address 192.168.1.200 into the manage page of the miner, the password is admin.


4.Testing piece
The environment temperature is 25℃,the indoor noise is about 41dBa. The mine for this test is nicehash.com and dash.cybtc.info.
(1).Noise test
The DR-100 interface doesn’t have the option to adjust the fan. The interface shows two fan speeds:

The noise is 79db.The distance is 20 cm from the miner.

(2).Power test
The power of the miner at 300MHz is as follows:


(3).Computing power test
 Nicehash’s hashrate testing time is 12H. The nicehash ‘s reject rate is high due to netdelay.But the overall computer power performance is very good.

 Cybtc’s hashrate testing time is 12H.The cybtc’s computer power fluctuates strongly but the overall situation is normal.

5.Conclusion
DR-100 with hashrate up to 17G is only 5KG and the power dissipation is about 820W.It is important that the DR-100 is in stock .There is really nothing to say.DR-100 has cost-effective.

hello, what is the price and delivetry date ??¨
thank you


Dipesh Sapkota

New Member
May 9, 2018
6
0
1
29
I have been mining from Pinidea DR-100 x11 Dash miner and I must admit that it was the right choice. The miners are 50% more efficient than the D3 from bitmain. The D3 produces 19.3 GH/s @ 1250W while the DR-100 PRO produces >22GH/s @ 1000W. I would like to recommend all of the people looking for the right hardware to go for it.
